Theatrical Transitions (Class 2)

scrollkit.effects.transitions provides cinematic transitions between messages, built on the preallocated OverlayMask. Every transition follows the same cover → swap-while-hidden → reveal sequence: the old content is covered, the swap_callback runs while the screen is fully hidden (so any glyph rebuild it triggers lands on a covered frame), then the new content is revealed. They are the proper replacement for the removed wipe/slide effects.

Full-screen swaps

Transitions cover the whole screen between content items, so they all pair with any content (PAIRS_WITH = ("fullscreen",)) — static or scrolling alike. The static-vs-scrolling distinction lives on the content effects that render the text (the scrollers and the bitmap-text palette effects), not on transitions. See pairing effects to content.

Each writes only a bounded set of mask spans/blocks per frame through the C bulk painter (bitmaptools.fill_region) — never a full-2048-pixel Python loop — with no per-frame allocation, and is strict-feasible at 20 fps.

from scrollkit.effects.transitions import (
    IrisSnap, VenetianShutters, MosaicResolve, CRTCollapse, LightSlitRewrite,
)

t = IrisSnap(duration_frames=8, cover_color=0x101840)
await t.start(display, swap_callback)     # swap_callback runs while fully covered
# then each frame:
await t.render(display)
if t.is_complete:
    ...

The pack

There are thirteen built-in transitions. The setting name is the value the transition_style setting takes (and what transitions_for() returns); the class is what you import. The order below is the UI/dropdown order.

Setting name	Class	Motion

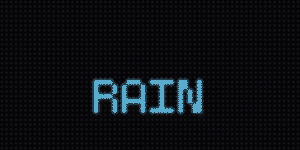

Drop from Sky	DropFromSky	New content slides into place from an edge — default top, or set direction to "bottom"/"left"/"right". A slide-in sibling, not the cover→reveal contract (see the note below).

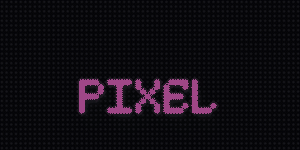

Pixel Dissolve	PixelDissolve	Text crumbles away as random 4×4 blocks cover the screen, then the new content dissolves back in block-by-block — like film grain burning through. Works naturally over moving text.

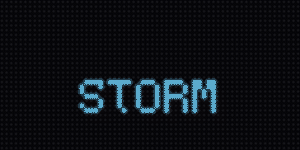

Column Rain	ColumnRain	Sixteen thin 4 px drops fall from the top in shuffled order, so ~4 are mid-fall at any moment — reads as actual rainfall, not a directional wipe.

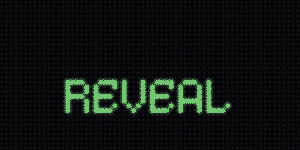

Gradual Reveal	GradualReveal	Staggered vertical bands (default 8) wipe in left-to-right, then peel back right-to-left. Clean and architectural — not rain.

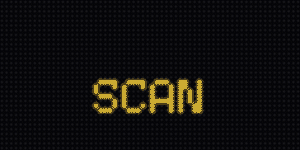

Scan Fold	ScanFold	Top and bottom scanlines fold toward the horizontal centre until covered, then unfold outward. Two bars per frame — very fast; good on scrolling text.

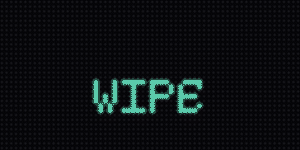

Horizontal Wipe	HorizontalWipe	A crisp vertical edge sweeps left-to-right to cover, then back to reveal. One rect per frame; pairs well with fast-scrolling text.

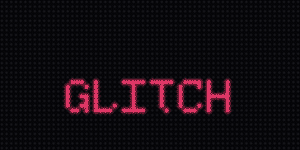

Glitch Bars	GlitchBars	Random-height horizontal bars (1–4 rows) flash on in shuffled order — like a corrupted video signal — then clear in reverse. Looks alive over moving text.

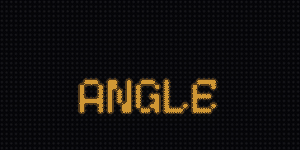

Diagonal Wipe	DiagonalWipe	A diagonal boundary sweeps top-left → bottom-right to cover, then bottom-right → top-left to reveal. One delta span per row per frame.

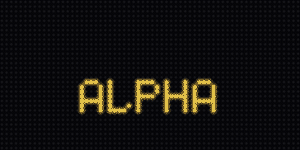

Iris Snap	IrisSnap	A chunky diamond aperture grows to hide the screen, then a diamond hole opens to reveal it (per-row span table).

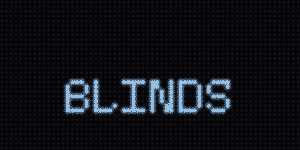

Venetian Shutters	VenetianShutters	Coarse horizontal bands (default 8) close then open like blinds, slightly staggered.

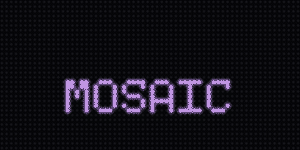

Mosaic Resolve	MosaicResolve	Blocks (default 8×4) cover then reveal in a fixed pseudo-random order — only the newly-changed blocks are written each frame. Deterministic given seed.

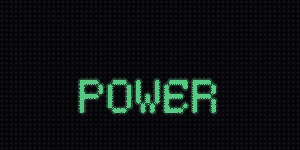

CRT Collapse	CRTCollapse	A CRT power-off: the picture collapses to a center scanline, then blooms back open from that line.

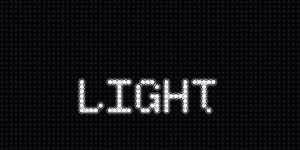

Light Slit	LightSlitRewrite	A bright vertical scanner (default 3 px) sweeps across, covering on the way out and revealing the new content on the way back.

DropFromSky is a duck-typed sibling, not a Transition subclass

It slides the new content in from an edge via a pre_render_hook instead of running the cover → swap → reveal mask lifecycle (there is nothing to hide — the incoming Labels are simply positioned off-screen and animated to their natural spot). It still exposes the same start / render / is_complete surface, so it is interchangeable everywhere the others are, and it is enumerated as a normal selectable transition. Pass direction="top" (default), "bottom", "left", or "right" to choose the entry edge.

Choosing a transition

A transition fires between screens, so it is a setting, not content you queue. Rather than hard-coding a class, ask the library which transitions exist and let the setting drive dispatch — new built-ins then appear automatically:

import random
from scrollkit.effects.transitions import transitions_for

# transitions_for() returns the user-facing NAMES (all transitions are full-screen
# swaps, so they all pair with "fullscreen"); pick one for the transition_style setting:
app.settings.set("transition_style", random.choice(transitions_for()))

transitions_for(presentation="fullscreen") reads the live PAIRS_WITH tags, so it stays correct as transitions are added or retagged. The name → class dispatch is transition_factory(name) (returns a fresh instance, or None for an unknown name); transitions_for() / TRANSITION_NAMES and _TRANSITION_MAP are the single source of truth, kept in lockstep by test_transition_registry.py. See pairing effects to content for the companion scrollers_for() / palette_effects_for() selectors.

Using a transition between content items

swap_callback is the sanctioned place to swap content — it fires while the mask fully covers the screen, so a Label rebuilt there is invisible and its cost is absorbed by the strict gate's median window:

def swap():
    self.label = next_message()   # rebuilds a Label, but it's hidden

await t.start(display, swap)

Hardware budget

Each class exposes a FEASIBILITY dict. A full-screen cover on the 64×32 panel is 2048 px done as one bulk fill_region (~0.6 ms), not a loop.

Effect	max_pixel_writes_per_frame	modeled_frame_ms
IrisSnap	2048 (bulk)	~7
VenetianShutters	2048 (bulk)	~8
MosaicResolve	~512 (a dozen blocks)	~6
CRTCollapse	2048 (bulk)	~8
LightSlitRewrite	2048 (bulk)	~8
PixelDissolve	~512 (block scatter)	~6
ColumnRain	~256 (a few 4 px drops)	~4
GradualReveal	~256 (a few bands)	~4
ScanFold	~256 (two bars)	~4
HorizontalWipe	~192 (one edge rect)	~3
GlitchBars	~256 (a few bars)	~5
DiagonalWipe	~384 (per-row delta spans)	~6
DropFromSky	0 (repositions Labels, no mask writes)	~0.5

All are hardware_safe = True, allocates_per_frame = False, and stay well under the ~50 ms (20 fps) bit_depth=4 device budget. DropFromSky writes no mask pixels at all — it only nudges the incoming Labels' positions — so it is the cheapest of the set.

See the Performance guide for the full cost model these budgets come from (the measured per-pixel and refresh costs, and why the 50 ms ceiling exists).

Adding your own transition

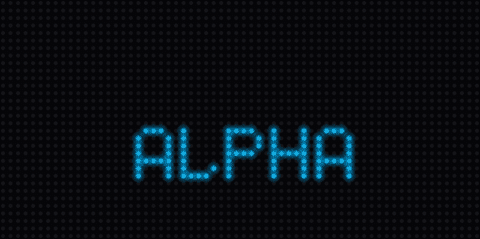

Subclass Transition and implement two methods — the base class runs the cover → swap → reveal lifecycle for you. The full, heavily-annotated reference is demos/medium/golden_transition.py (GoldenWipe); copy it.

The rules:

1. Implement _paint_cover(progress) and _paint_reveal(progress), where progress is an eased 0..255 through each phase. Paint into self._mask (an OverlayMask) with fill_rect / clear_rect — bounded, bulk writes only. No per-pixel Python loop over the panel; no per-frame allocation.
2. Override start(display, swap_callback) to capture display.width/height, then await super().start(...).
3. Declare a FEASIBILITY dict on the class (CircuitPython can't attach attributes to functions).

Then prove it — the safety gate is the headless feasibility harness, not a runtime sandbox:

from scrollkit.dev import run_headless
result = run_headless(my_app, frames=120, strict=True)
assert result.ok and not result.errors   # raises FeasibilityError if over budget

To make it a selectable built-in (offered in the transition_style setting):

1. Add the class to _TRANSITION_MAP in scrollkit/effects/transitions.py.
2. Add its user-facing name to TRANSITION_NAMES in scrollkit/config/transition_names.py, in the same position.

These two lists are the single source of truth for transitions; a unit test (test_transition_registry.py) fails if they drift, so a selectable name can never silently fail to dispatch, and importing the settings never drags the effects package onto the device boot path. To use a custom transition without making it a built-in, override _get_transition() on your app to return an instance (see the golden demo).
